Polytrace User Guide
- Work in progress* This page will showcase the functionality of each option used in the polytrace tool.

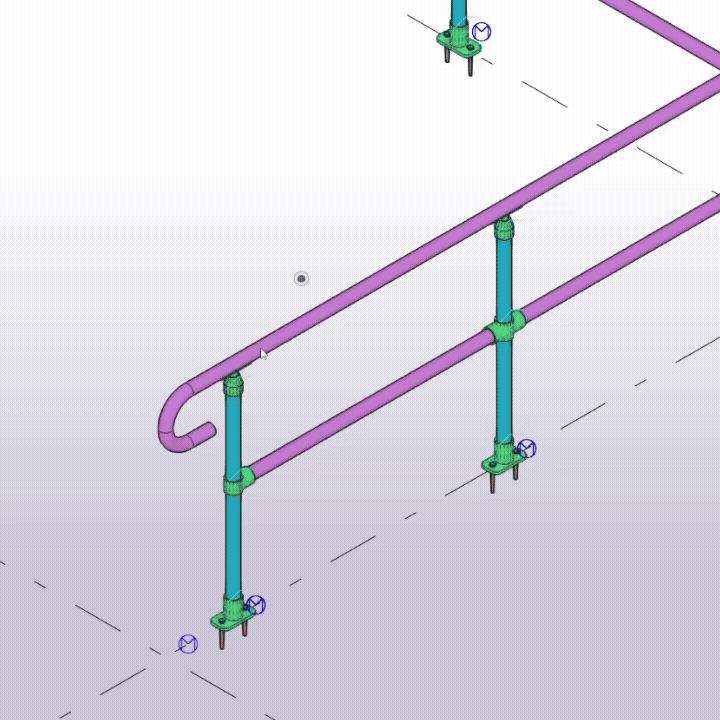

Contextual Toolbar[edit]
The contextual toolbar gives you quick access to the most commonly used functions. The toolbar can be pinned in place and toggled open for ease of use.

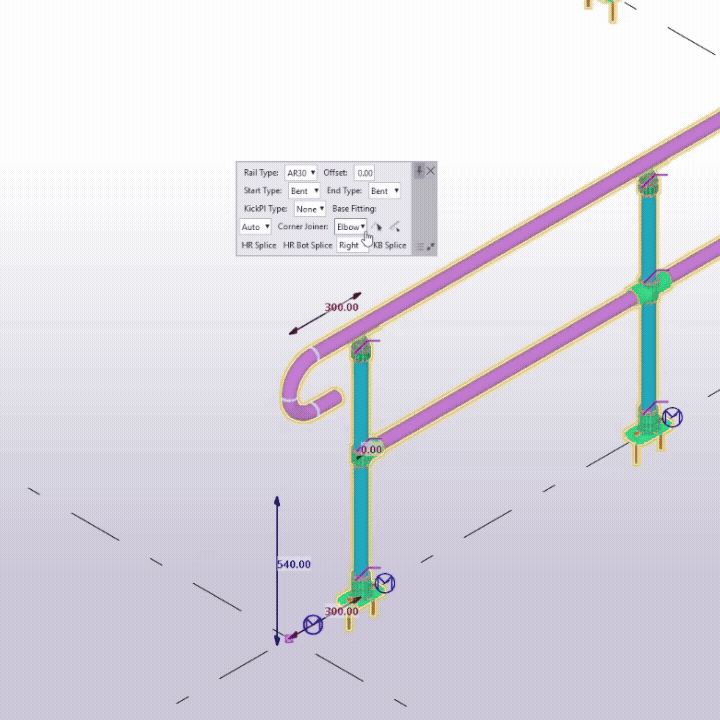

Rail Type[edit]
Define the product type. Check the handover sheet and markup to determine which product should be drawn.

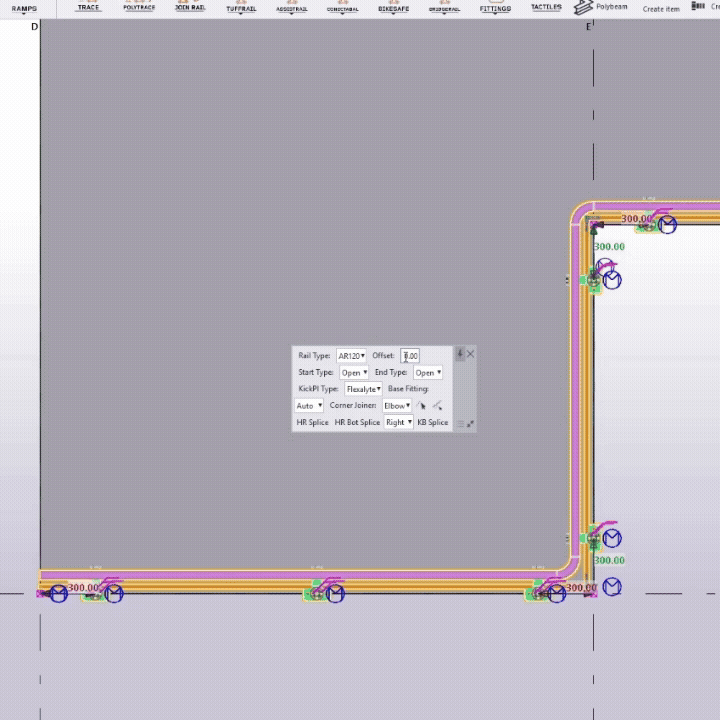

Offset[edit]
Set the stanchion distance from edge. Direction is determined by the direction field, use negative numbers to change direction without affecting handrail direction.

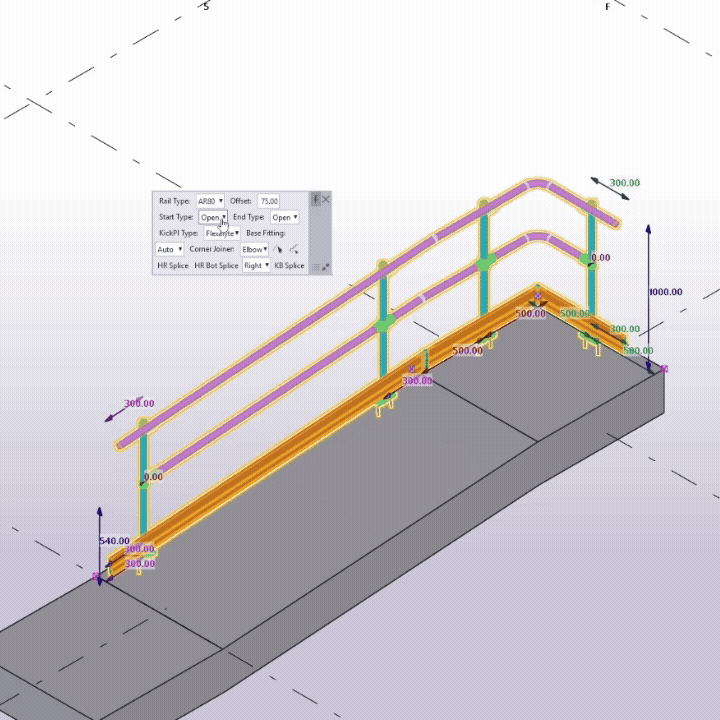

Start Type & End Type[edit]
Set the start and end conditions of the rail. Options are contextual to the product being used.

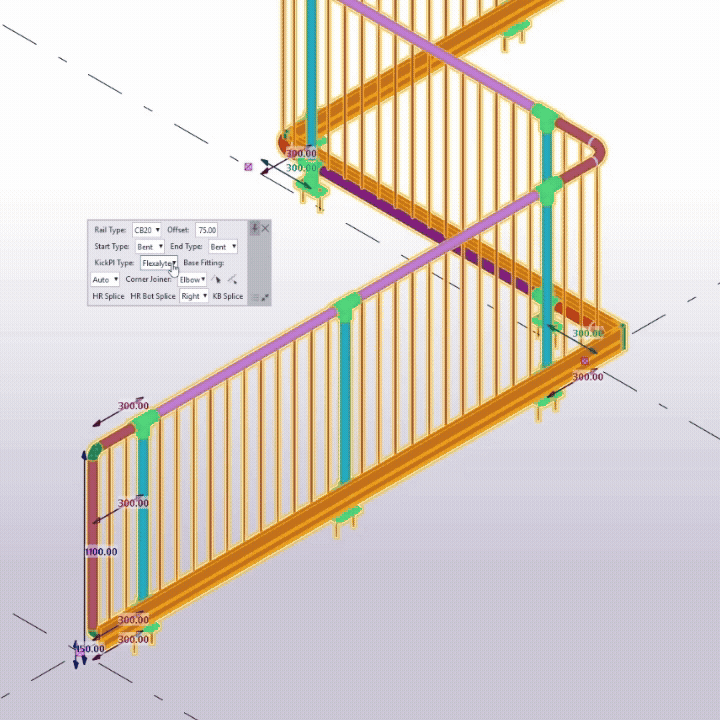

Kickplate Type[edit]
Select the kickplate type, when applicable.

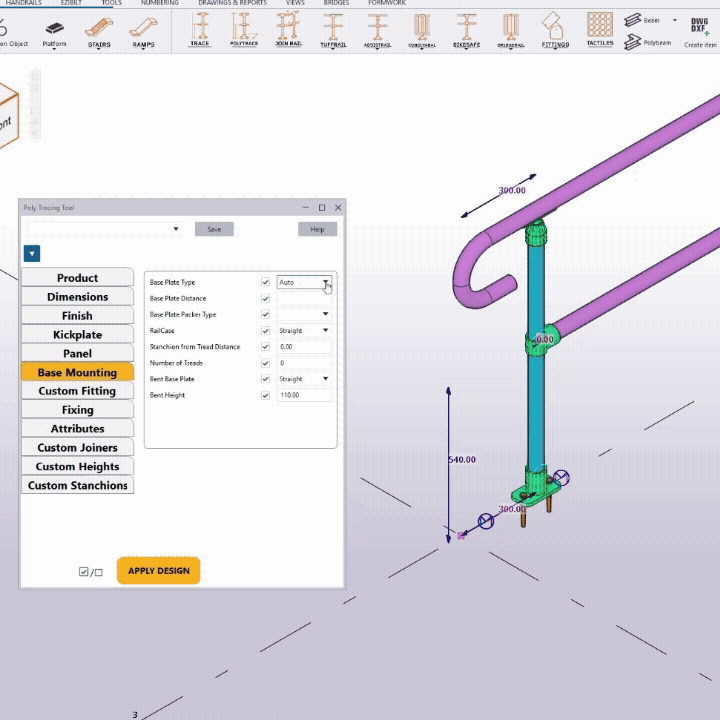

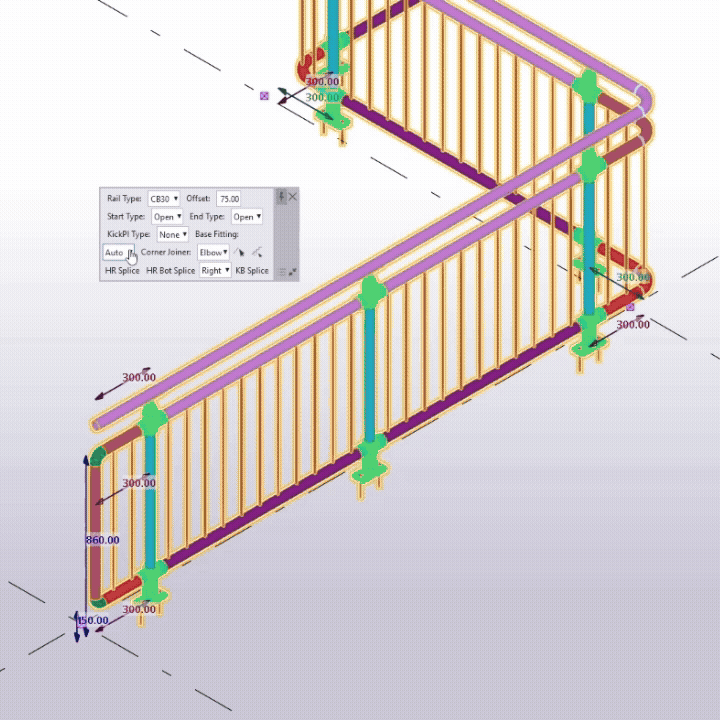

Base Fitting[edit]
Choose the base plate mounting option. Refer to the handover sheet to see which base mounting type is quoted.

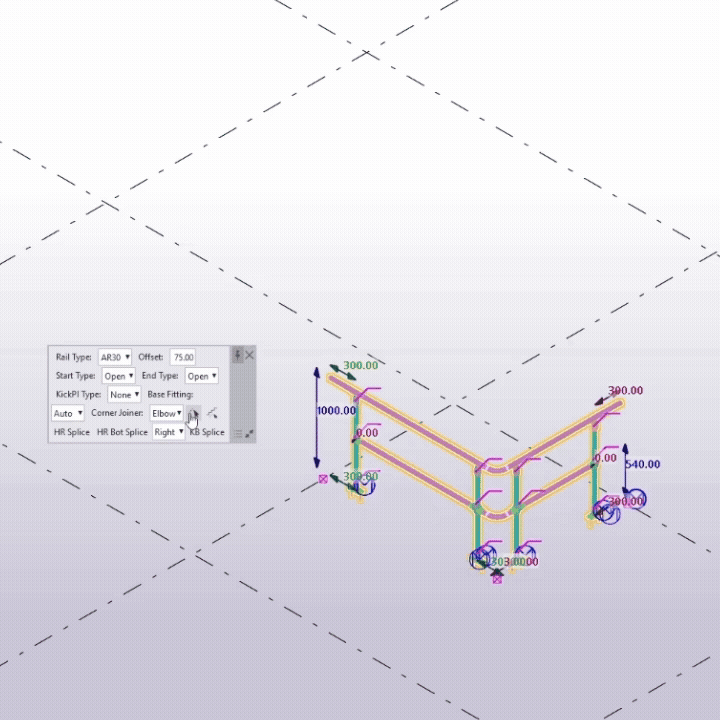

Add Working Points[edit]
Add additional working points to an existing polytrace component.

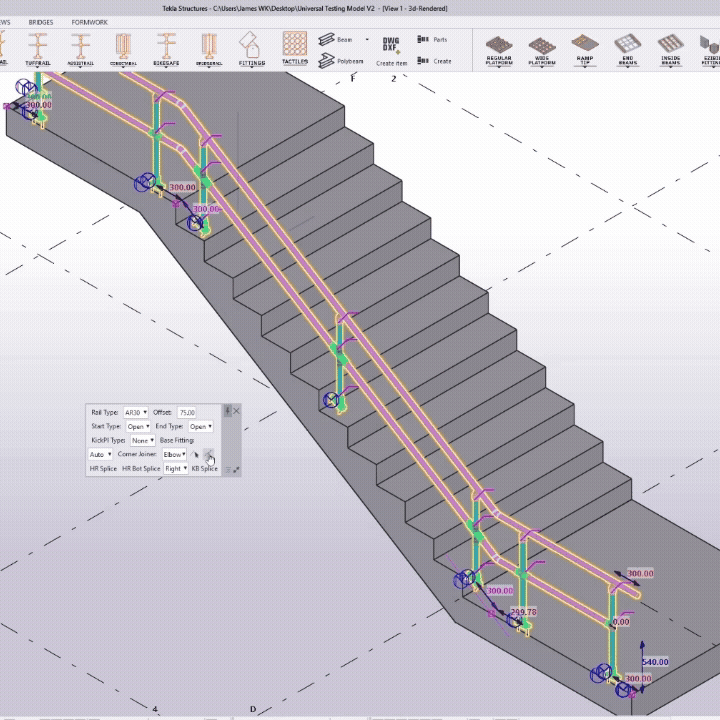

Add Stair Points[edit]
Define sections as a stair and position stanchions on treads.
Main Properties[edit]

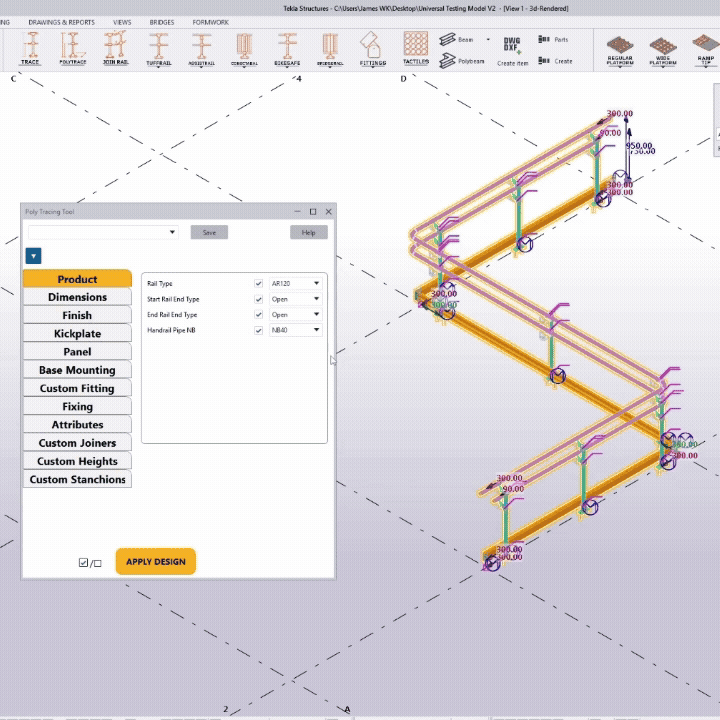

Rail Type[edit]
Define the product type. Check the handover sheet and markup to determine which product should be drawn.

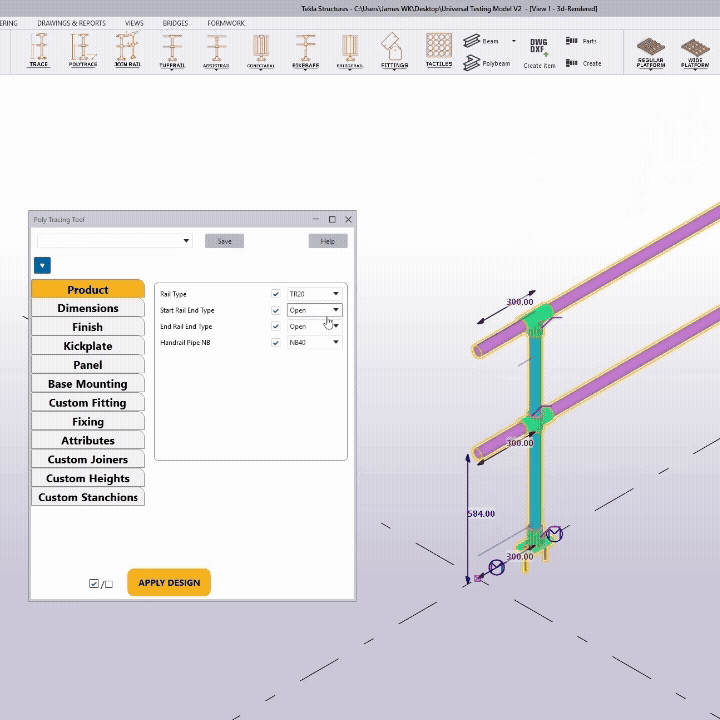

Rail End Type[edit]
Set the start and end conditions of the rail. Options are contextual to the product being used.

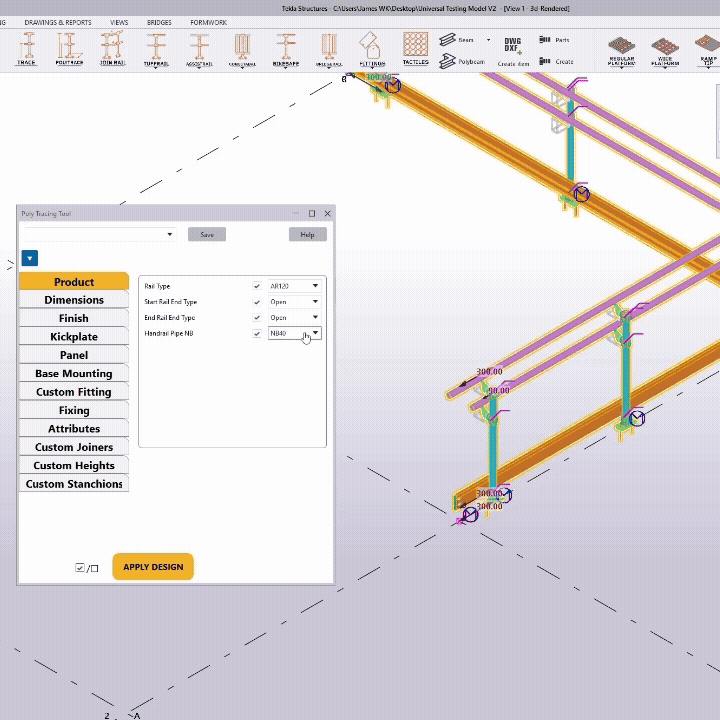

Handrail Pipe Nb[edit]
Set the pipe diameter for the handrail. Refer to the handover sheet to see which diameter is quoted.
Dimensions[edit]

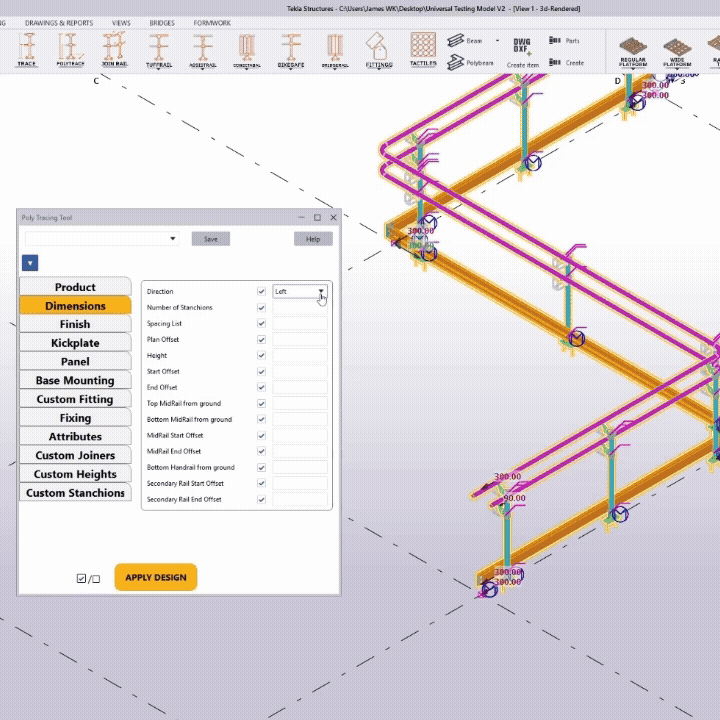

Direction[edit]
Define which side the handrail appears. Left and right is determined based on the initial direction the product is traced from.

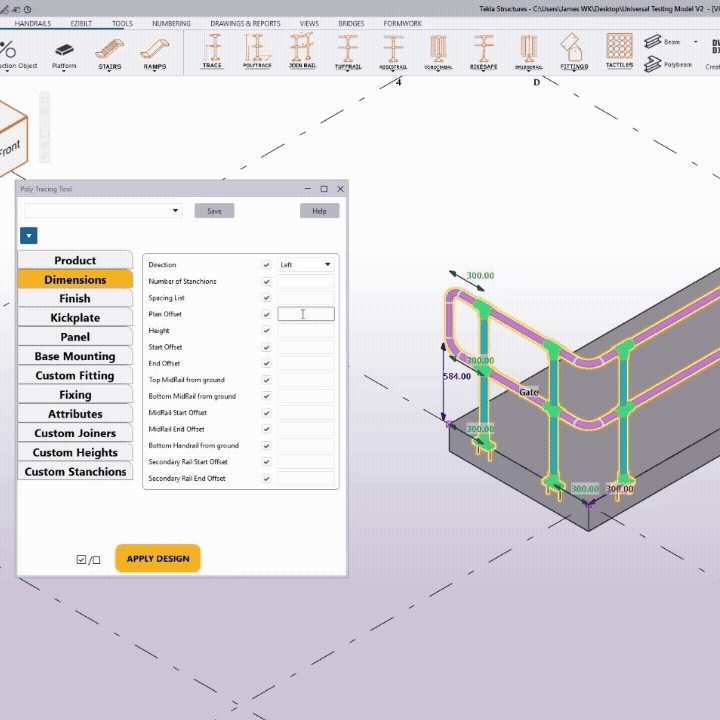

Plan Offset[edit]
Set the stanchion distance from edge. Direction is determined by the direction field, use negative numbers to change direction without affecting handrail direction.

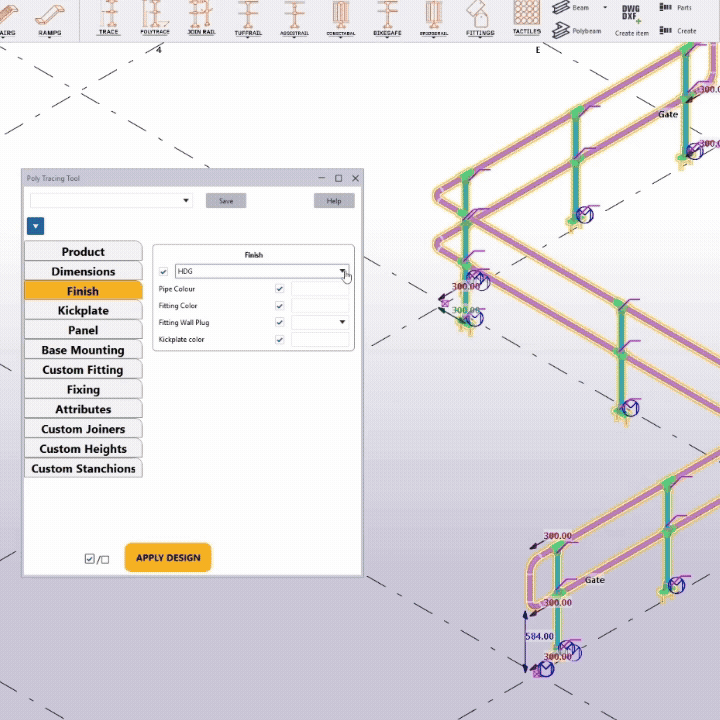

Finish[edit]
Define the product finish and colour. Item codes will automatically update to the appropriate codes based on the finish type.
Kickplate[edit]
Panel[edit]

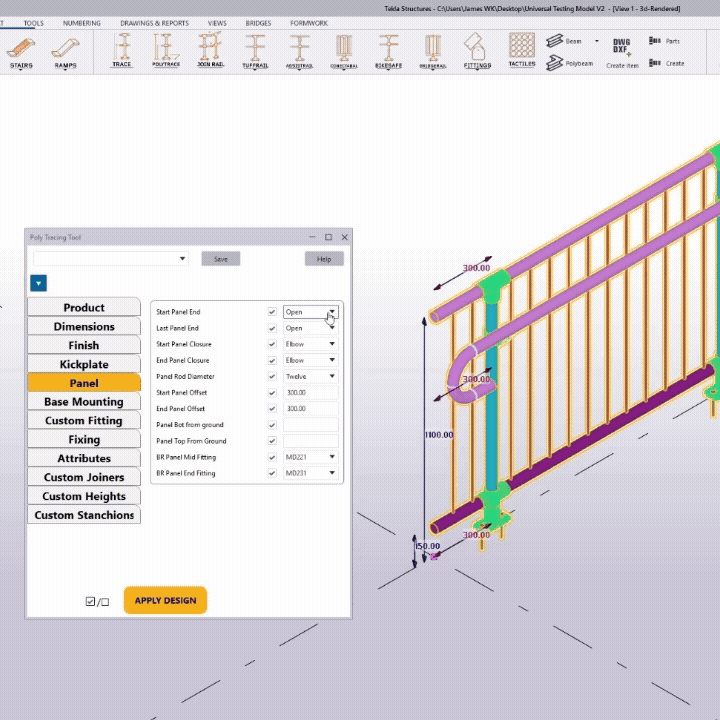

Panel End[edit]
Determine the end condition of the panel. panel end is independent from rail end type.

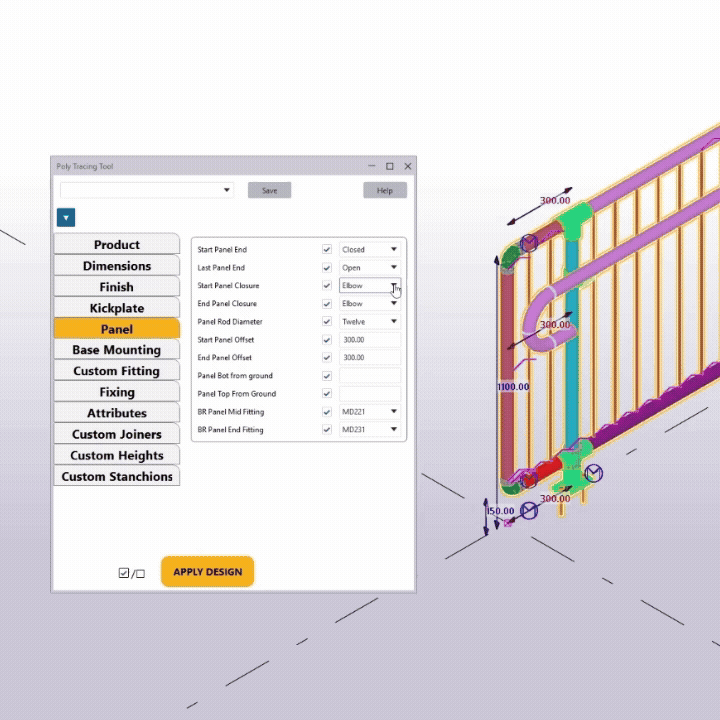

Panel Closure[edit]
Set whether a closure panel uses welded elbows or bent pipe.

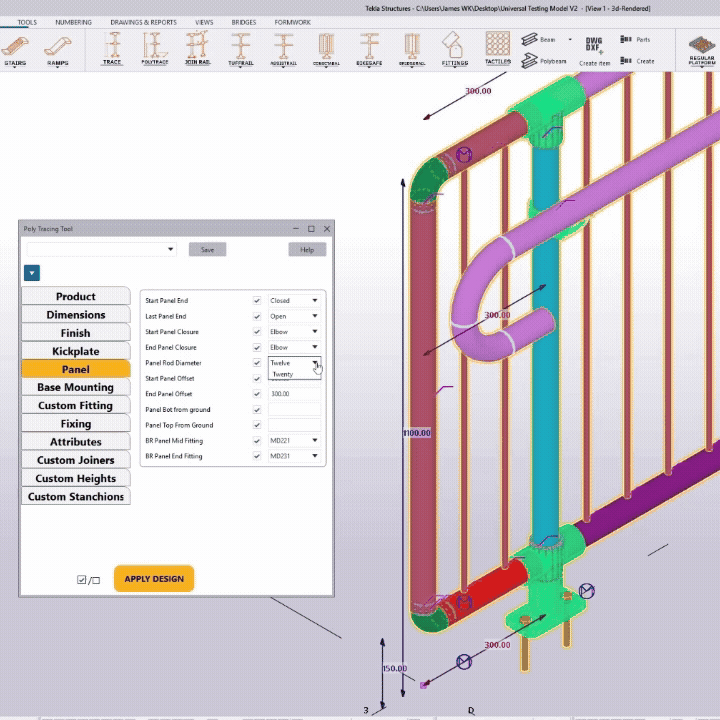

Panel Rod Diameter[edit]
Choose the rod diameter used in panels.

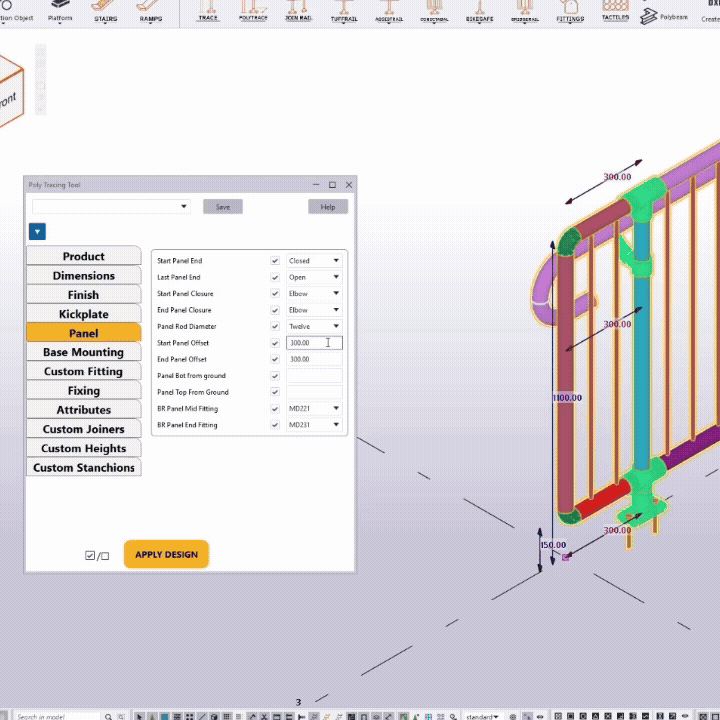

Panel Offset[edit]
Adjust the distance panels extend from the start and end stanchion.

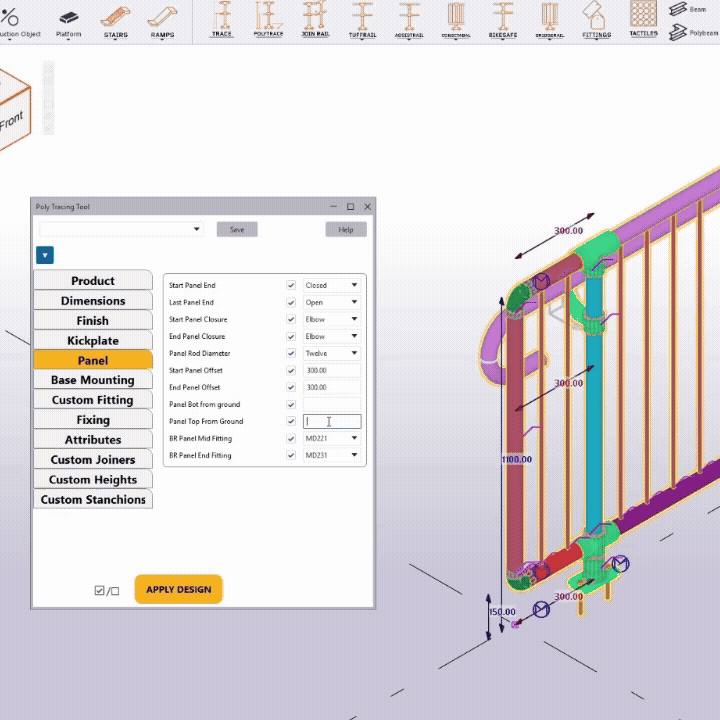

Panel Top / Bottom From Ground[edit]
Adjust the heights of the top and bottom of the panel, relative to the ground height.

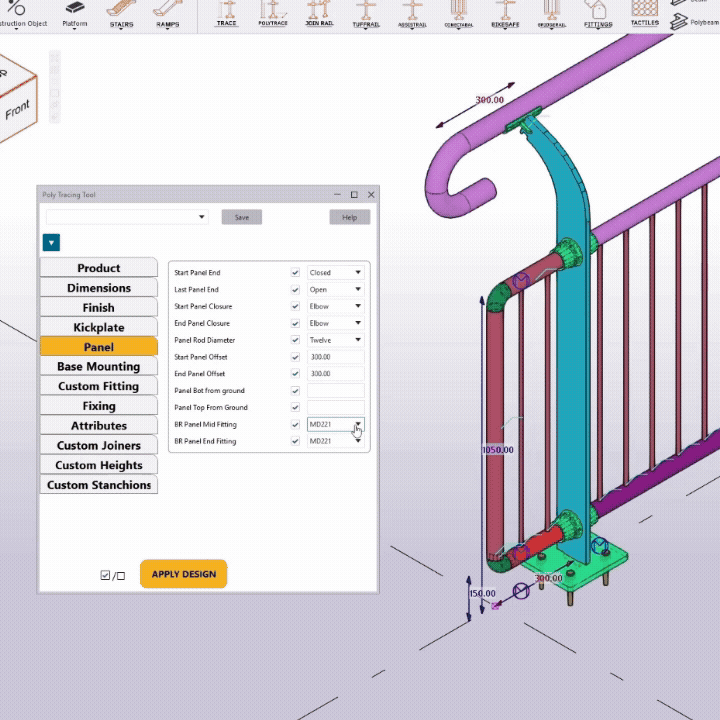

BR Panel Fitting[edit]
Choosing the fitting used to mount panels to stanchions for Bridgerail.
