Assembly Name Guide

Context

Name =

Part Name =

Assembly Name =

Name Guide

STANCHION – Appears on Pick list with Part Name and Pack list with Assembly Name

FITTING – Appears on Pick list with Part Name, only appears on Pack list with Part Name if it is the main part of its assembly

PIPE – Appears on Pick list with Part Name and Pack list with Assembly Name

Does not appear on Pack list if the main parts Assembly Name is

- MD530

- MD531

- MD540

- MD545

- MD550

- MD551

- MD552

- MD553

- MD580

- MD582

- MD590

- GATE

- BAL

- BAL.ASM.CTM

- WHR

Appears as a Gate if the main parts Assembly Name is MD582 or MD482 and it is the main part of the assembly

PANEL – Appears on Pick list with Part Name (if Assembly Name is of a standard panel, it appears with Assembly Name) and Pack list with Assembly Name

WHR – Appears on Pick list with Part Name and Pack list with Assembly Name

TOEBOARD – All parts with the same Item Number are rounded into one line and quantity is derived from total cut length divided by the stocked length

For Flexalyte, the 'stock length' is taken from between the 2nd from last and 4th from last value in the items description

As an example: FLEXALYTE Modular Kerbrail, Aluminium - 2600mm

I am aware that this is a completely insane way of doing things.

For Tuffgaurd and Flatbar, this is dependant on the Part Name

CUSTOM - Appears on Pick list with Part Name, only appears on Pack list with Part Name if it is the main part of its assembly

TACTILE - Appears on Pick list with Part Name and Pack list with Part Name

ROD – Appears on Pick list as one item (based on Part Name). Quantity is equal to total cut length divided by 6000mm. Does not appear on Pack List 

Assembly Examples

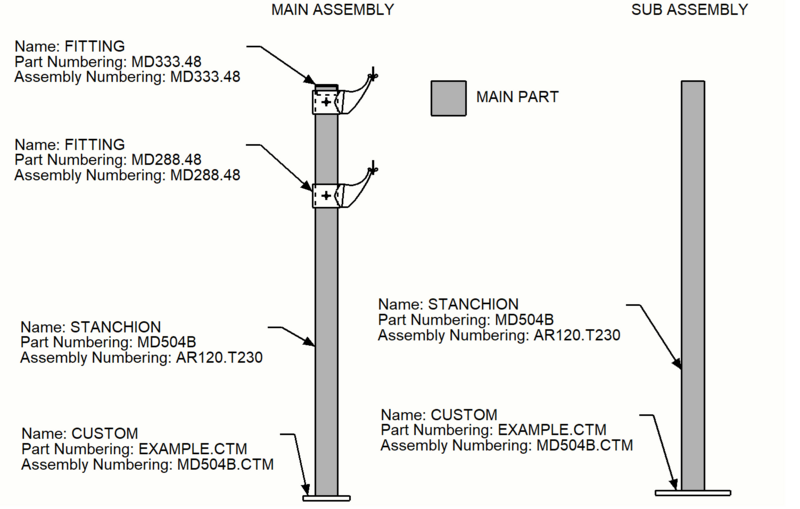

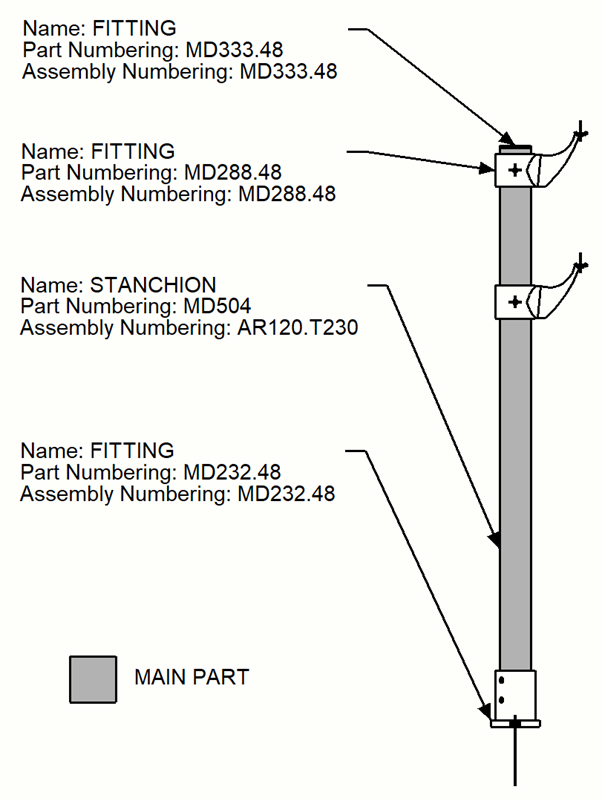

Stanchion

Fabricated Stanchion

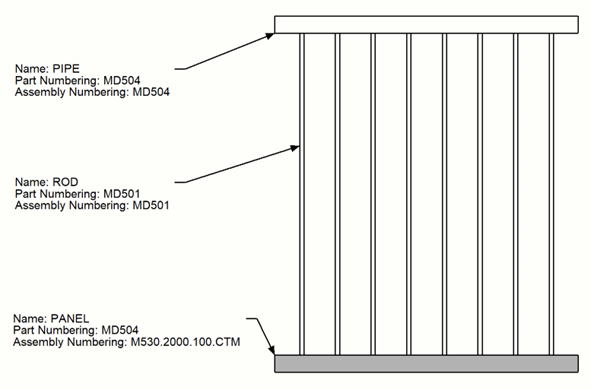

Panel

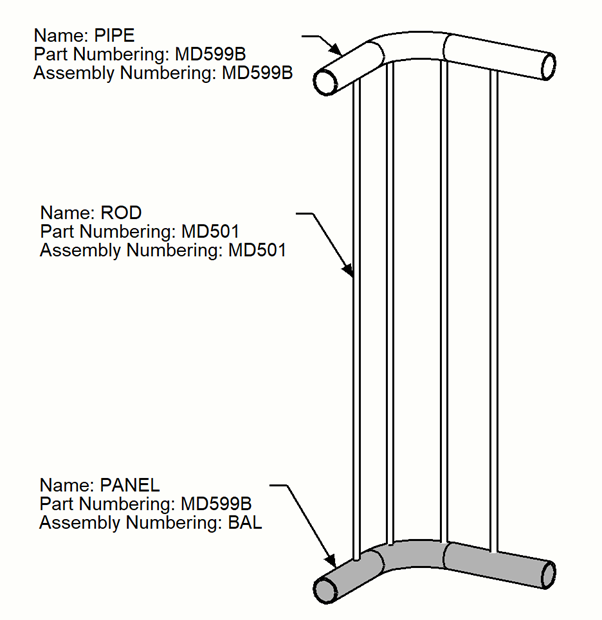

Fabricated Panel

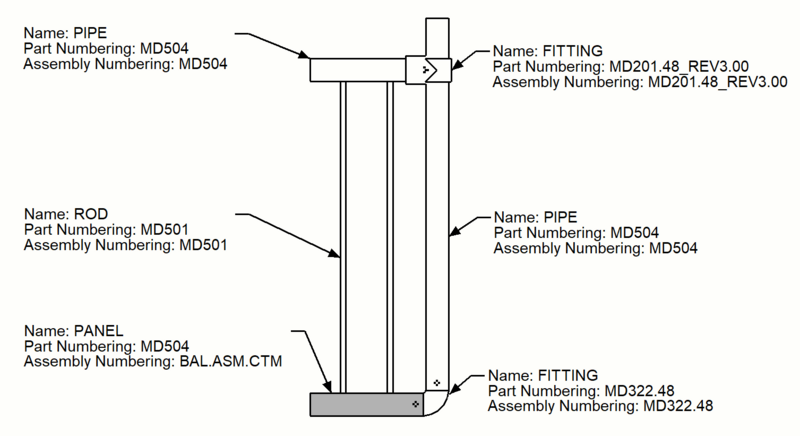

BAL.ASM.CTM

A sub assembly is not required. The report tool will look for panels with the name BAL.ASM.CTM and add an appropriate size cutdown panel to the pick list automatically.

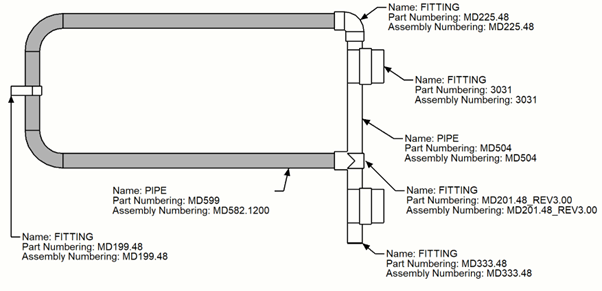

Gate

The main part does not need to have the name ‘GATE’ or anything similar. The numbering rules look for the Assembly Numbering code, see the ‘PIPE’ rules in the Name Guide for more context.
